Ferrosos
Produtos:

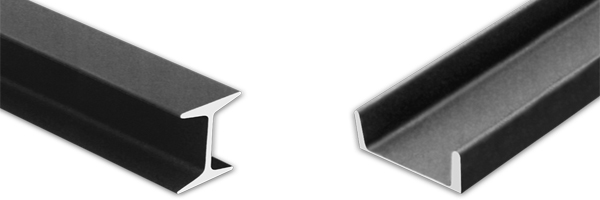

Vigas I e U aço laminadas e dobradas de chapas


  • Laminada ASTM A36
PROPRIEDADES PARA DIMENSIONAMENTO
h
pol.		Peso
kg/m		ALT.
mm		Aba
larg.
bf		ESP.
tf		Alma
esp./mm
tw		Alma
3"8,4876,259,26,64,321ª
3"9,6876,261,26,66,382ª
4"11,46101,667,67,44,901ª
4"12,65101,669,27,46,432ª
5"14,88127,076,28,35,441ª
5"18,20127,079,78,38,812ª
6"18,60152,484,69,15,981ª
6"22,0152,487,59,18,712ª

Legenda
TermoSignificado
bfLargura de aba
twEspessura de alma
tfEspessura de aba
hAltura interna

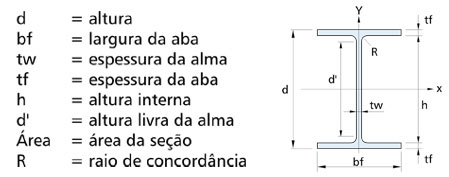

  • Perfil I laminada ASTM A572 ( PADRÃO EUROPEU )
PROPRIEDADES PARA DIMENSIONAMENTO
BITOLA Massa
Linear
kg/m		 d
mm 		bf
mm 		ESPESSURAh
mm 		d'
mm 		Área
cm
tw
mm 		tf
mm
W 150 x 13,013,01481004,34,913811816,6
W 150 x 18,018,01531025,87,113911923,4
W 150 x 22,522,51521525,86,613911929,0
W 150 x 29,829,81571536,69,313811838,5
W 150 x 37,137,11621548,111,613911947,8
W 200 x 15,015,02001004,35,219017019,4
W 200 x 19,319,32031025,86,519017025,1
W 200 x 22,522,52061026,28,019017029,0
W 200 x 26,626,62071335,88,419017034,2
W 200 x 31,331,32101346,410,219017040,3
W 200 x 35,935,92011656,210,218116145,7
W 200 x 46,146,12032037,211,018116158,6
HP 200 x 53,053,020420711,311,318116168,1
W 200 x 71,071,021620610,217,418116191,0
W 250 x 17,917,92511014,85,324022023,1
W 250 x 22,322,32541025,86,924022028,9
W 250 x 25,315,02571026,18,424022032,6
W 250 x 28,428,42601026,410,024022036,6
W 250 x 32,732,72581466,19,124022042,1
W 250 x 38,538,52621476,611,224022049,6
W 250 x 44,844,82661487,613,024022057,6
HP 250 x 62,062,024625610,510,725520179,6
W 250 x 73,073,02532548,614,225520192,7
W 250 x 80,080,02562559,415,6255201101,9
HP 250 x 85,085,025426014,414,4255201108,5
W 250 x 89,089,026025610,717,3255201113,9
W 310 x 21,021,03031015,15,729227227,2
W 310 x 23,823,83051015,66,729227230,7
W 310 x 28,328,33091026,08,929127136,5
W 310 x 32,732,73131026,610,829127142,1
W 310 x 38,738,73101655,89,729127149,7
W 310 x 44,544,53131666,611,229127157,2
W 310 x 52,052,03171677,613,229127167,0
HP 310 x 79,079,029930611,011,0292277100,0
HP 310 x 93,093,030330813,113,1291277119,2
W 310 x 97,097,03083059,915,4291277123,6
W 310 x 107,0107,031130610,917,0291277136,4
HP 310 x 110,0110,030831015,415,5291277141,0
W 310 x 117,0117,031430711,918,7291277149,9
HP 310 x 125,0125,031231217,417,4291277159,0
W 360 x 32,932,93491275,88,533230842,1
W 360 x 39,039,03531286,510,733230850,2
W 360 x 44,044,03521716,99,833230857,7
W 360 x 51,051,03551717,211,633230864,8
W 360 x 57,857,83581727,913,133230872,5
W 360 x 64,064,03472037,713,532028881,7
W 360 x 72,072,03502048,615,132028891,3
W 360 x 79,079,03542059,416,8320288101,2
W 360 x 110,0110,036025611,419,9320288140,6
W 360 x 122,0122,036325713,021,7320288155,3
W 410 x 38,838,83991406,48,838135750,3
W 410 x 46,146,14031407,011,238135759,2
W 410 x 53,053,04031777,510,938135768,4
W 410 x 60,060,04071787,712,838135776,2
W 410 x 67,067,04101798,814,438135786,3
W 410 x 75,075,04131809,716,038135795,8
W 460 x 52,052,04501527,610,842840466,6
W 460 x 60,060,04551538,013,342840476,2
W 460 x 68,068,04591549,115,442840487,6
W 460 x 74,074,04571909,014,542840494,9
W 460 x 82,082,04601919,916,0428404104,7
W 460 x 89,089,046319210,517,7428404114,1
W 530 x 66,0 66,0 525 165 8,9 11,4 502 478 83,6
W 530 x 72,0 72,0 524 207 9,0 10,9 502 478 91,6
W 530 x 74,0 74,0 529 166 9,7 13,6 502 478 95,1
W 530 x 82,0 82,0 528 209 9,5 13,3 501 477 104,5
W 530 x 85,0 85,0 535 166 10,3 16,5 502 478 107,7
W 530 x 92,0 92,0 533 209 10,2 15,6 502 478 117,6
W 610 x 101,0101,060322810,514,9573541130,3
W 610 x 113,0113,060822811,217,3573541145,3
W 610 x 125,0125,061222911,919,6573541160,1
W 610 x 155,0155,061132412,719,0573541198,1
W 610 x 174,0174,061632514,021,6573541222,8
  • "U" Laminada ASTM A36
PROPRIEDADES PARA DIMENSIONAMENTO
h
pol.		 mm Peso
kg/m		 Área
cm²		 Aba
larg/mm bf		 Esp. tf /mm Alma
esp. tw/mm		 Alma
3" 76,2 6,10 7,78 35,8 6,90 4,32 1ª
3" 76,2 7,44 9,48 38,8 6,90 6,55 2ª
4" 101,6 8,20 10,10 40,2 7,50 4,67 1ª
4" 101,6 9,30 11,90 41,8 7,50 6,27 2ª
6" 152,4 12,20 15,50 48,8 8,70 5,08 1ª
6" 152,4 15,60 19,90 51,7 8,70 7,98 2ª
8" 203,2 17,10 21,68 57,2 9,50 5,59 1ª
8" 203,2 20,50 25,93 57,2 9,50 7,70 2ª
10" 254,0 22,77 29,00 66,68 11,10 6,10 1ª
10" 254,0 29,76 37,90 66,68 11,10 9,63 2ª

Legenda
TermoSignificado
bfLargura de aba
twEspessura de alma
tfEspessura de aba
hAltura interna
  • Perfil dobrado de chapas
PERFIL SIMPLES
DIMENSÕESSP
h B e=r cm² Kg/m
mmmmmm
200504,7613,3910,51
--3,048,756,87
--2,667,706,04
--2,286,635,20
--2,005,554,58
150504,7611,018,64
--3,047,235,68
--2,666,375,00
--2,285,494,31
--2,004,603,79
127504,769,917,78
--3,046,535,13
--2,665,764,52
--2,284,973,90
--2,004,173ssss,43
100504,768,636,77
--3,045,714,48
--2,665,043,95
--2,284,353,41
--2,003,653,01
100404,767,676,02
--3,045,114,01
--2,664,513,54
--2,283,893,06
--2,003,272,70
75404,766,485,09
--3,044,353,41
--2,663,843,01
--2,283,322,61
--2,002,802,31
--1,522,261,77
50253,042,672,10
--2,662,381,86
--2,282,071,62
--2,001,751,45
--1,521,421,12
PERFIL ENRIJECIDO
DIMENSÕESSP
h B d e=r
mm		 cm² Kg/m
mmmmmm
30085254,7622,9718,03
---3,0415,0811,84
---2,6613,2810,42
---2,2811,458,99
---2,009,608,06
25085254,7620,5916,17
---3,0413,5610,65
---2,6611,959,38
---2,2810,318,09
---2,008,657,26
20075254,7617,2613,55
---3,0411,448,98
---2,6610,087,92
---2,288,486,66
---2,007,135,98
15050204,7612,989,53
---3,048,706,38
---2,667,695,65
---2,286,664,89
---2,005,614,38
12750173,047,215,66
---2,666,395,01
---2,285,544,35
---2,004,684,01
10050173,046,395,02
---2,665,674,45
---2,284,933,87
---2,004,163,58
7540153,044,903,85
---2,664,373,43
---2,283,812,99
---2,003,232,70
---1,522,632,07
5025103,042,922,30
---2,662,642,07
---2,282,331,83
---2,002,001,66
---1,521,641,29
